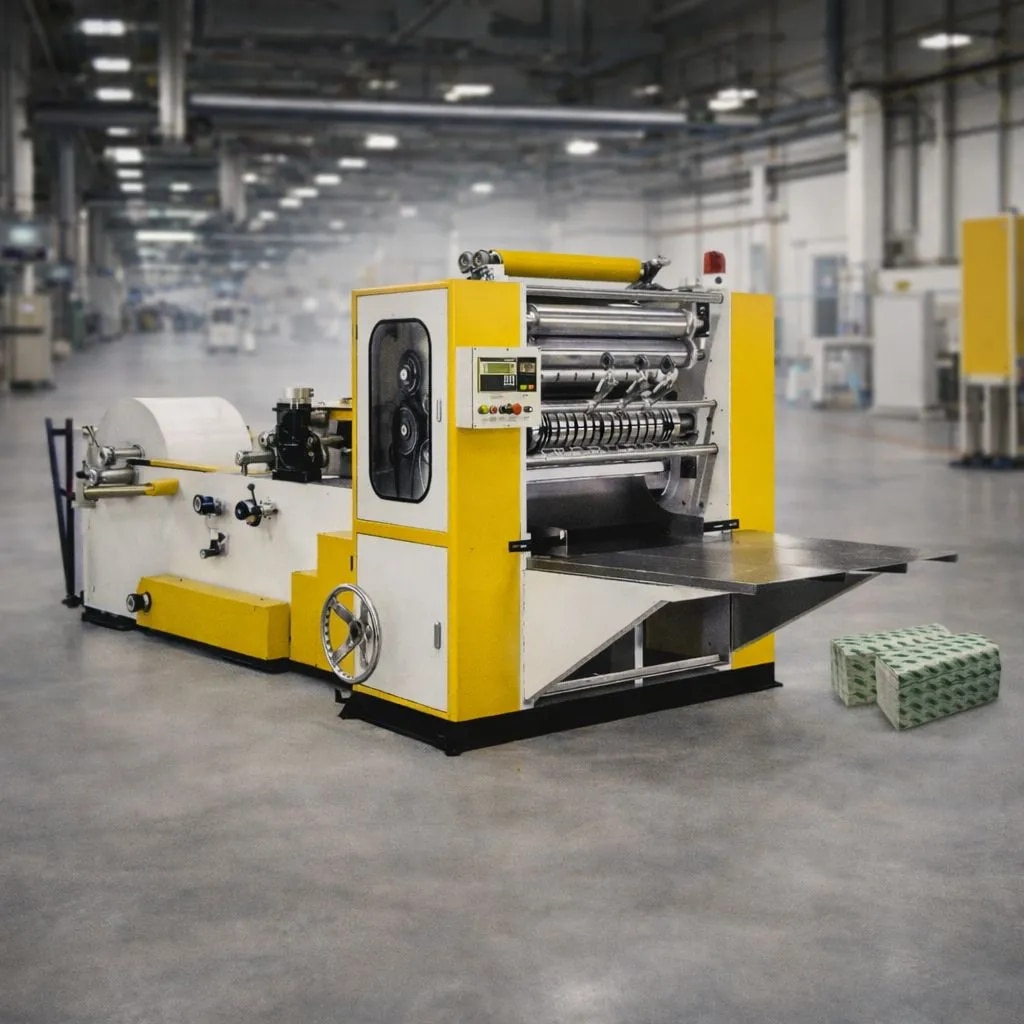

NF/2L/3L N-Fold Hand Towel Tissue Machine
Description
NF/2L/3L N-Fold Hand Towel Tissue Machine
(N-Fold Towel Making Machine)
The SK/NF/2L/3L N-Fold Hand Towel Tissue Machine is engineered for high-speed production of premium-quality N-fold hand towels. Designed with advanced PLC automation, vacuum folding technology, and precision embossing, this machine ensures uniform folding, superior finishing, and reliable performance for modern tissue manufacturers.
Built for efficiency and durability, it is ideal for producing hygienic hand towels used in commercial, hospitality, and institutional sectors.
⸻
Key Features
High-Speed Production
• Processing Capacity: 600 × 2 sheets per minute
• Approx. 125 boxes per 8-hour shift
• Stable and continuous operation
Precision Folding System
• “N” Vacuum Suction System
• Accurate and uniform N-Fold mechanism
• Smooth and consistent sheet separation
Premium Embossing
• Steel-to-Steel Embossing Unit
• Enhances softness, strength, and visual appeal
⸻
Technical Specifications
Sheet & Raw Material Details
• Finished Sheet Size: 230 × 230 mm
• Raw Material Width: 460 mm
• Parent Roll Maximum Size: 1200 mm × 460 mm
• Raw Material Core Diameter: 76.2 mm
• Tissue Type: Soft Tissue 33 – 40 GSM
⸻
Automation & Control System
• PLC Computer Controller
• PLC Drive Operating System
• Frequency Conversion Speed Regulator
• Easy data setting and precise production control
• Ink Marked Counter System
⸻
Mechanical & Power System
• Transmission Unit: Timing Belt
• Required Power: 15 kW
• Pneumatic System: 3 HP Air Compressor
(Minimum air pressure to be provided by customer)
⸻
Machine Details
• Outer Dimensions: 4500 × 1500 × 1800 mm (L × W × H)
• Machine Weight: Approx. 2500 – 3000 kg
⸻
Ideal For
• N-Fold Hand Towel Manufacturers
• Institutional & Hospitality Tissue Suppliers
• Commercial Tissue Converting Units
• Hygienic Paper Product Industries
⸻
The SK/NF/2L/3L N-Fold Towel Making Machine combines speed, automation, and precision engineering to deliver consistent quality and high productivity — making it a powerful solution for expanding tissue manufacturing operations.
