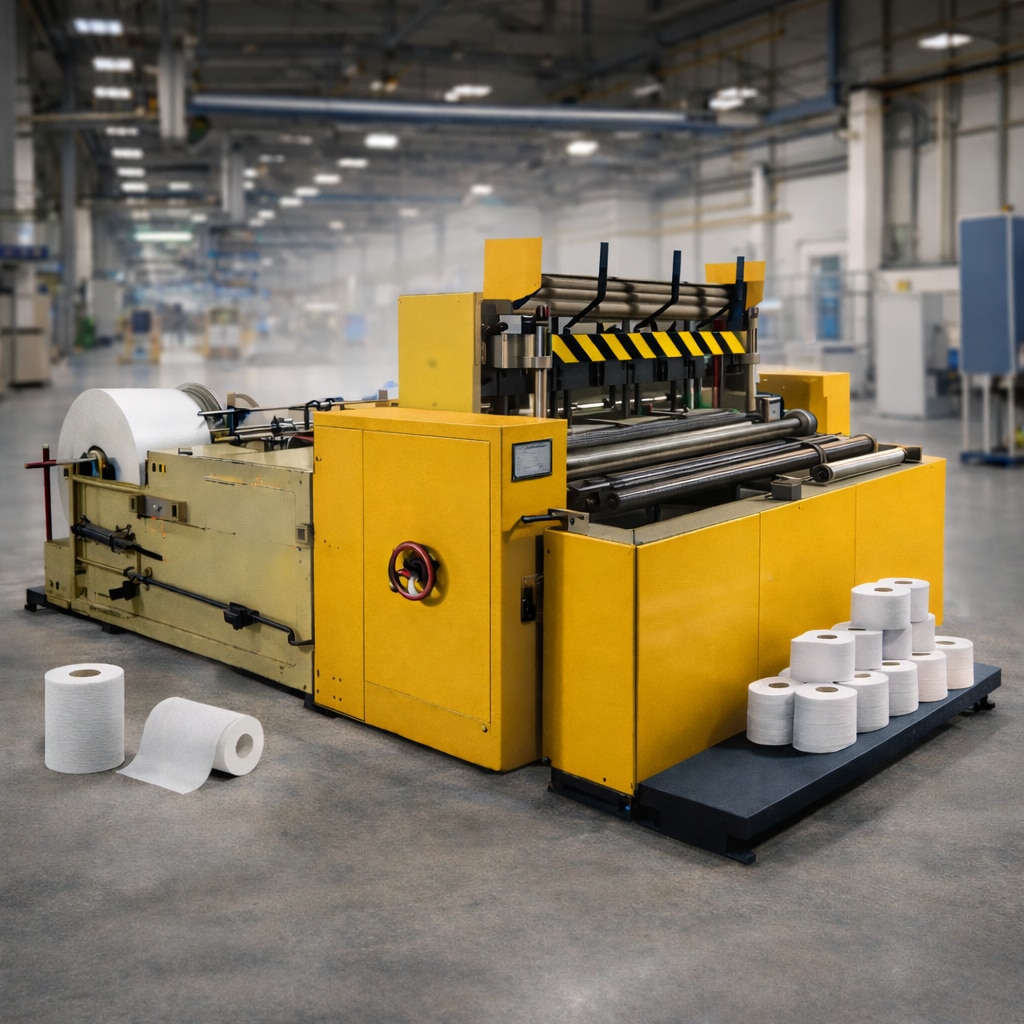

Fully Automatic Toilet Paper Roll and Kitchen Towel Paper Production Machine

Fully Automatic Toilet Paper Roll & Kitchen Towel Production Machine

Our Fully Automatic Toilet Paper Roll and Kitchen Towel Production Machine is engineered for high-speed, precision rewinding, embossing, and perforating operations. Designed for large-scale tissue manufacturers, this machine delivers superior roll quality, consistent sheet control, and high production efficiency.

Built with advanced PLC automation, frequency-controlled drives, and pneumatic loading systems, it ensures smooth performance, reduced labor effort, and maximum output reliability.

⸻

Key Features

High-Speed Production

• Production Speed: Up to 100 meters per minute

• Capacity (8 Hours): 8,000 – 15,000 rolls

• Stable, continuous industrial operation

Flexible Paper Width Options

Available Maximum Paper Width:

1350mm / 1450mm / 1650mm / 1850mm / 2250mm

(or customized as per requirement)

Strong Rewinding & Unwinding System

• Maximum Unwind Diameter: 1200mm

• Maximum Rewinding Diameter: 120mm

• Jumbo Roll Stand: 1 Standard (Extra stands optional as per requirement)

• Parent Roll Core Inner Diameter: 76mm

• Pneumatic Loading System for easy jumbo roll lifting

⸻

Advanced Processing System

Perforation & Embossing

• Perforation Repeat: 115mm

• Embossing Unit: One (Steel-to-Rubber Type)

• Ensures strong bonding, softness, and attractive finish

Finished Log Specifications

• Finished Log Outer Diameter: 100 / 120 / 150 mm

• Finished Log Inner Diameter: 38 / 45 / 50 / 60 mm

• Diameter Control: Electronic / Air Control System

• End Product: 100 gm logs with 110 mm sheet length

⸻

Automation & Control

• PLC Drive with Touch Screen (HMI Interface)

• Variable Frequency Speed Regulation

• Frequency Conversion Main Drive – 9 kW, 380V, 50Hz

• Accurate Data Setting & Easy Parameter Adjustment

• Main Transmission: Advanced Frequency Conversion System

⸻

Power Requirements

• 5 HP, 380V – 440V, 3 Phase, 50 Hz

• Air System Required for Pneumatic Operations

⸻

Machine Details

• Machine Weight: Approx. 2500 kg – 5000 kg (depending on model size)

• Space Required: Approx. 7 ft × 7 ft × 6 ft (L × W × H)

(Depends on machine configuration)

⸻

Raw Material

• Tissue Paper: 13 – 16 GSM

⸻

Ideal For

• Toilet Paper Roll Manufacturers

• Kitchen Towel Producers

• Tissue Converting Units

• Large-Scale FMCG Supply Chains

⸻

This Fully Automatic Production Machine is a complete solution for manufacturers seeking high output, precision control, and superior product consistency — delivering efficiency, reliability, and long-term profitability.
